Tandem Digger Trailer 3500kg GVM 4 wheel European Braking

Enquire now

FULLY COMPLIANT transportation of 2 ton, 2.5 ton & 2.7 ton diggers & equipment up to 2810kg



DIGGER & TRANSPORT TRAILERS, Hire & Contractors, Digger & Transport Trailers

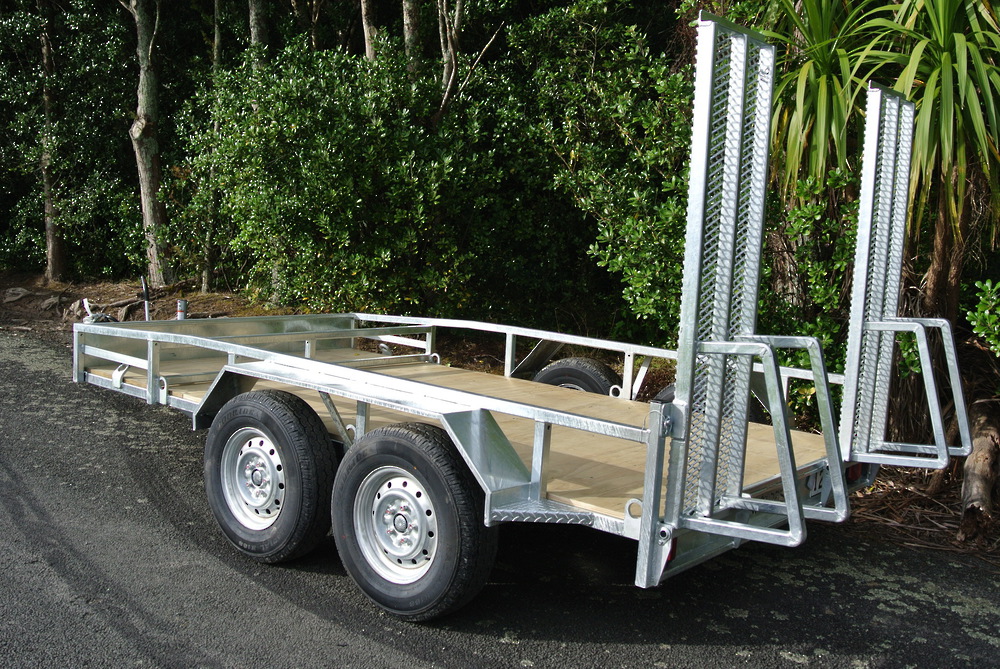

  • The Compass 3500kg digger trailer is specially designed and built to carry medium-sized diggers in the market. Same design as our proven 'D116' 3500kg digger trailer, but a European 4 wheel over-ride braking system is installed. This braking system gives unbelievably smooth and powerful braking performance, with no reliance on the trailer plug connection to operate the brakes and absolutely no need for in-cab brake controllers. Simply hook up and tow with complete confidence- if you haven't tried one of these it's a must before you purchase your next trailer!

    The trailer comes to you fully spec'd with:

    3300 x 1800mm internal deck area

    19mm plywood decking

    Hot dipped galvanized chassis

    Self-equalizing rocker suspension

  • 4 wheel mechanical drum brakes
  • European Knott 3500kg coupling - no electric brake controller necessary!
  • 1 7/8" Coupling (CM Multi-fit 1 7/8" & 50mm Coupling available as an upgrade)
  • Extra heavy duty 65 x 65mm RHS Axles
  • Long life unitized wheel bearings - these will do hundreds of thousands of kms before needing replacement!
  • Extra heavy duty 10" knott jockey wheel
  • Spare wheel mount
  • Multi-volt LED lights with side marker lights & plug & play wiring loom for quick, easy replacement
  • Large bucket compartment
  • Heavy duty tie-down points
  • Tread-plate mudguard steps for safe easy access to trailer
  • Secure ramp mount
  • Heavy duty self-supporting mesh
  • Large ramp size for optimum safety when loading; 1500 x 400mm
  • The frame is made from high tensile box section welded together into a rigid chassis
  • 5 Year Structural Warranty!

Weight specifications for this Trailer:

Gross Vehicle Mass (GVM): 3500kg
Max Load: 2810kg
Tare Weight: 690kg
